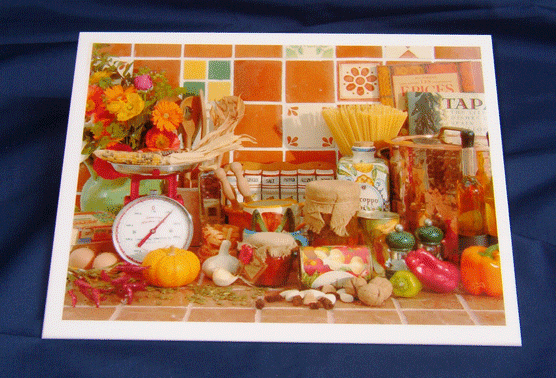

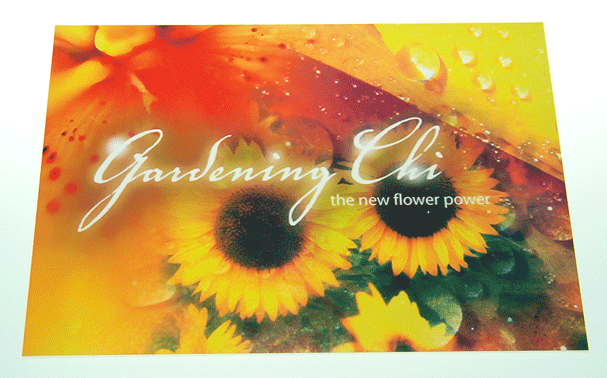

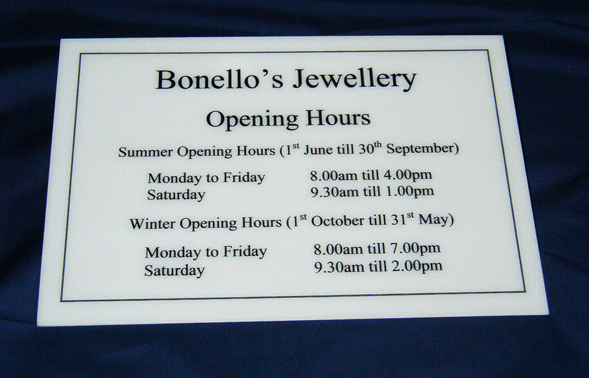

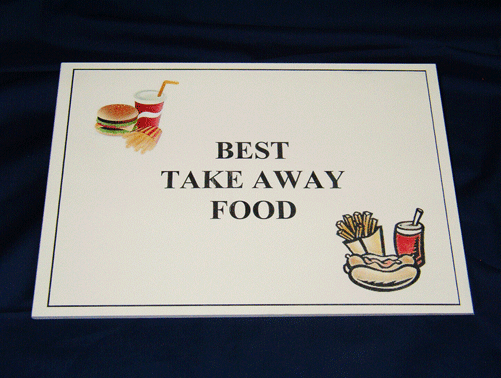

Printing directly on Acrylic is a new service we offer our clients. This make it possible to print any full colour image or logo on acrylic thus taking advantage of all the advantages acrylic material offers you.
However, for the moment we have some limitations concerning size, acrylic backing colour and environmental propertise:
I. We can only print up till A3 size (30 cm x 42 cm or 16 1/2 inches x 11 5/8 inches). Any other smaller size is not a problem.
II. Printing can only be done on light coloured acrylic, clear or certain special acrylic like mirror and fluorescent.
III. Acrylic with print cannot be used externally since although it can withstand water, direct sunlight will make it fade by time.
But, if you are going to use it internally you have great advantages that cannot be achieved by other sign making methods like engraving, vinyl (Stickers) and acrylic flat signage.
The Cast Acrylic material we use for our printing is the same Acrylic we use for all our other acrylic products and is produced by the best companies in Europe. Thus, we can offer you a vast range of colours, opacity, thickness and also overall sizes.
In fact the thickness of our opaque acrylic that can be used for printing
All specifications are subject to change without notice
All images (except were indicated) are copyright of Skyline Plastic Works
No unauthorised use of any material found on this web site is allowed
TOP
" We try to make the impossible possible! "
Experience & Reliability
INFORMATION
Printing on acrylic facia is the ideal solution for:

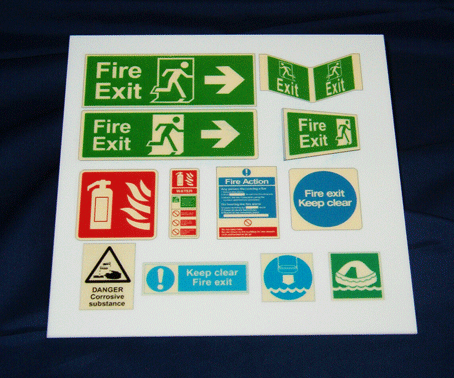

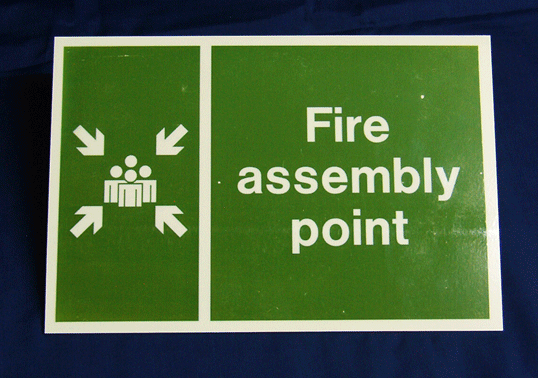

ALL KINDS OF ILLUMINATED OR NON ILLUMINATED SIGNS
PERSONALIZED SIGNAGE
AUTOMATED SIGNS
INTERPRETATION SIGNAGE
ADVERTISING INFORMATION
INTERIOR DECORATION ACCESSORIES
etc.
For detailed information on the other materials we can offer you as facia to print on and all frames available to finish of your printed signs or images, please click one of the buttons below.
DETAILS
ADVANTAGES
CLICK THE IMAGES TO ENLARGE
starts at 3mm and goes up to 6mm
for certain colours, whilst the
thickness of our transparent acrylic
starts at 2mm and goes up to 25mm
for certain tints. Besides more than
25 different opaque colour shades
and 10 different colour tints, we can also offer you Gold, both as an opaque colour and as Mirror, together with Semi- Transparent acrylic.
Check below for all the colours, thickness and shades of our Acrylic range:
SPECKS
COLOUR / SHADE THICKNESS
White Opaque
Metric (Imperial)
The colours above are as accurate as your monitor display will allow. Skyline Plastic Works cannot accept any responsibility for variations between the colours above and the actual acrylic sheets. The colours above are just a representation and should be used as a guide only.
All the rectangle images can be enlarged by clicking on them
All the rectangle images can be enlarged by clicking on them
Fluorescent
Yellow
5mm - 7/32"
Fluorescent
Orange
5mm / 7/32"
Fluorescent
Red
5mm / 7/32"
TECHNICAL
DATA
PROPERTY
Relative Density
Rockwell Hardness
Water Absorption
Flammability - 1
Flammability - 2
Flammability - 3
Tensile Strength
Tensile Modulus
Elongation at Break
Flexural Strength
Flexural Modulus
Charpy Impact Strength
Vicat Softening Point
Coefficient of Thermal Expansion
Coefficient of Thermal Conductivity
Specific Heat
Light Transmission
Refractive Index
Surface Electrical Resistivity
Electrical Strength
Poissons Ratio
UNIT
1.19 gcm ³
102 M Scale
0.21%
B2
HB
Class 3
75 MPa
3200 MPa
4%
116 MPa
3210 MPa
12 kJ.m ²
>110 °C
7.7 x 10 .K ¹
0.17 W(m.k.) ¹
1.5 J(gK) ¹
>92% in/en/bei/in 3mm
1.49
>10 m ²
15 kV.mm ¹
0.38
TEST METHOD
ISO 1183
ISO 2039-2
ISO 62
DIN 4102
UL 94
BS 476, Pt 7
ISO 527 (5mm/min)
ISO R527 (5mm/min)
ISO 527 (5mm/min)
ISO 178 (2mm/min)
ISO 178 (2mm/min)
ISO 179 (un-notched)
ISO 306A
ASTM D696
NBN B62-202
by DTA
ASTM D1003
ISO 489/A
IEC 93
IEC 243
~
Check all the technical data of our
Cast Acrylic below:
-5
-
14
-
-
The above data represents typical results obtained using standard test pieces.
The above information is given in good faith, but we are unable to guarantee its accuracy or to accept responsbility in respect of factors which are outside our knowledge or control.
