In order to provide a better service to our clients, Skyline Plastic Works offers you an easy and professional method to wall-mount sign panels. By using one of our two Panel Fixtures, you can now safely fix any sign panels without having the problem of how to hide the screw heads. In both Fixing Systems, the backing must be drilled a number of times according to its size.
PANEL FIXTURES .....
© Skyline Plastic Works - 2003-2017
All rights reserved
All specifications are subject to change without notice
All images (except were indicated) are copyright of Skyline Plastic Works
No unauthorised use of any material found on this web site is allowed
Return to the Top of this page
Return to the Top of this page
Return to the Top of this page
TOP
" We try to make the impossible possible! "
Experience & Reliability
INFORMATION
One of our vast selection of products
Panel Fixtures are the ideal solution for :

FIXING RAISED SIGN PANELS
FIXING SIGN PANELS DIRECTLY TO THE WALL
DOOR SIGNS
NAME PLATES
ALL KINDS OF SIGNS
PROFESSIONAL FIXING
etc.
PANEL SUPPORTS
The Panel Support system is used when the sign panel is to be fixed RAISED from the wall. We can offer you two types of Panel supports that differ in their material: Anodised Aluminium in Satin finish or Chrome in Gloss Finish. Both types of support panels are made up of two parts - the front part and the back part.

The FRONT part is T-shaped, with the function to hold the sign panel in place. The BACK part is cylindrical in shape, with the function to fix the whole support to the wall. The front part is screwed to the back part, thus wedging the sign panel in between.

By having a screw system, these Panel Supports are very safe, heavy duty and comfortable to use. They can be adjusted easily and re-used when the sign panel must be changed. Thus, on the long run, they are very economical.

Two sizes for each type are available, three of which hold sign panels with a thickness from 1mm up till 10mm, whist one type support panels from 1mm up till 20mm. The difference is in the diametre of the hole to be drilled in the sign panel, the circular face of the front part support and the length of the back part which determines the space between the wall and the panel.

The material does not only affect the visual finish but also their long term use. The Anodised Aluminium can be used both internally and externally and can withstand any weather. The Chrome fixtures are better used for interior situations since they cannot withstand wet conditions for long.

Click to enlarge
MIRROR CUP SCREWS
The Mirror Cup Screw System is used when the sign panel is to be fixed DIRECTLY to the wall. The sign panel is screwed to the wall by means of a special wall screw that has a tread hole in the head. Once the sign panel is firmly in place, the head of the screw can be hidden by means of a Mirror Cup in semi-spherical shape that is screwed directly to the head of the wall screw.

Two types of mirror cups are available, both of the same shape and size. One is made of Chrome with a silver mirror polished finish and the other is made of brass having a gold mirror polished finish.

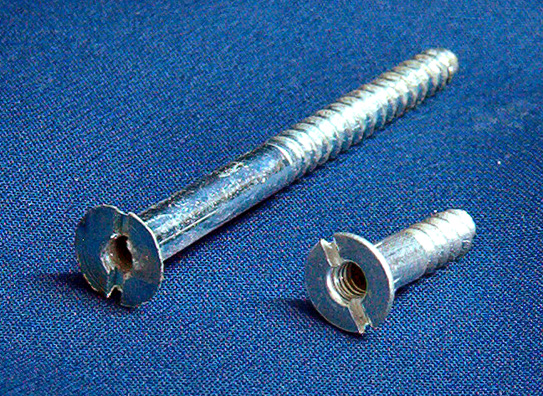

In view of the different thickness in the material of the sign panel and / or the backing wall, two different lengths of special wall screws are available: 18mm and 50mm.
Click to enlarge

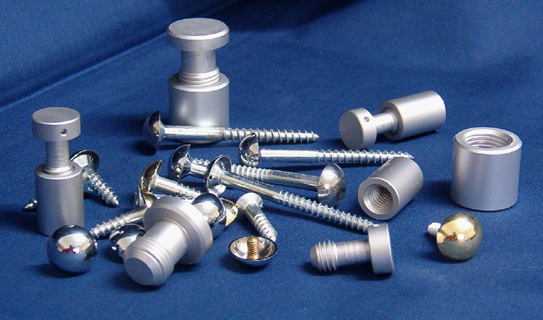

At Skyline Plastic Works you can find a wide selection of panel fixtures

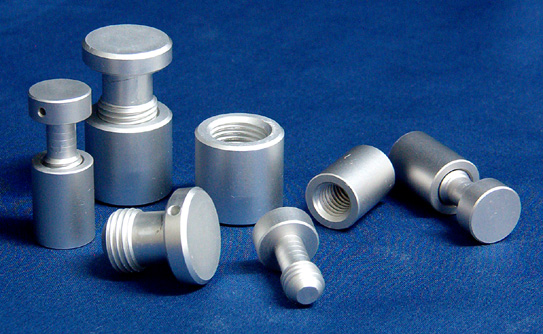

The Panel Support System - Sign Panel raised from the wall
Click to enlarge
Click to enlarge
Click to enlarge

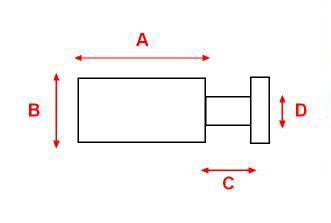

Check dimensions below
D
metric

9 mm

13 mm
imperial

5/16 in.

9/16 in.
C
metric

1-10mm

1-10mm
imperial

1/32-3/8 in.

1/32-3/8 in.
A
metric

17 mm

18 mm
imperial

10/16 in.

11/16 in.
metric

12 mm

19 mm
imperial

1/2 in.

3/4 in.
B
Small

Large

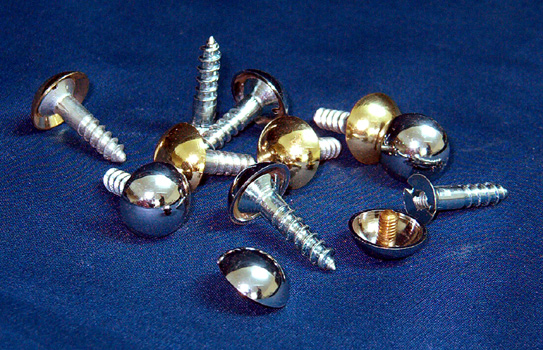

The Mirror Cup Screw System - Sign Panel fixed directly to the wall
Click to enlarge
Click to enlarge
Check dimensions below
metric

5 mm

5 mm
imperial

7/32 in.

7/32 in.
C
A
metric

18 mm

50 mm
imperial

11/16 in.

2 in.
metric

13 mm

13 mm
imperial

9/16 in.

9/16 in.
B
Small

Large
Return to the Home Page
Send us your comments
Make a search for your needs in our web site
Learn about our 40 year old history
Find out where you can find us and print a map
Contact us and give us your comments
Learn about the services we can offer you
Order our brochure and we will sent it to you
Check the list of our main customers
Click to enlarge
Click to enlarge
Click to enlarge
CHROME in Gloss Finish
ANODISED
ALUMINIUM
in Satin Finish
CHROME
in Gloss Finish
D
metric

9 mm

9 mm
imperial

5/16 in.

5/16 in.
C
metric

1-10mm

1-20mm
imperial

1/32-3/8 in.

1/32-3/4 in.
A
metric

19 mm

33 mm
imperial

3/4 in.

1 in. 5/16
metric

16 mm

22 mm
imperial

5/8 in.

7/8 in.
B
Small

Large
ANODISED ALUMINIUM in Satin Finish
